設定 BLADE RackSwitch G8124 (清除刪除 Switch Port Status)

2017-02-05

[ 清除單 Port 的數值 ]
點選 STATISTICS
點選 Switch Ports
確認目前流量數值
[ Ps.在此可以查看目前已使用 IN and OUT 的數值 ]

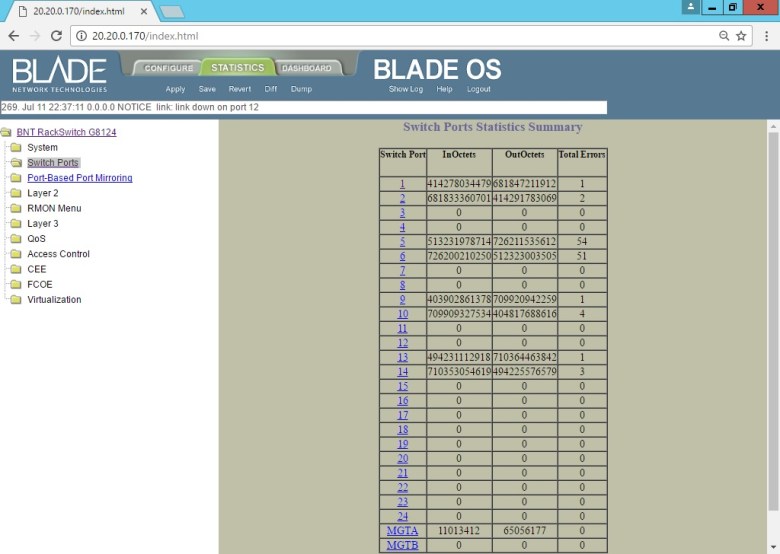

Set BLADE RackSwitch G8124 (Clear Delete Port Port) (1)

點選 1 (Port)
點選 clear
Set BLADE RackSwitch G8124 (Clear Delete Port Port) (2)

點選 Submit (直接清除)
[ Ps.目前 Interface Statistics – Input and Output “有" 使用量 ]
Set BLADE RackSwitch G8124 (Clear Delete Port Port) (3)

[ Ps.目前 Interface Statistics – Input and Output “無" 使用量 ]

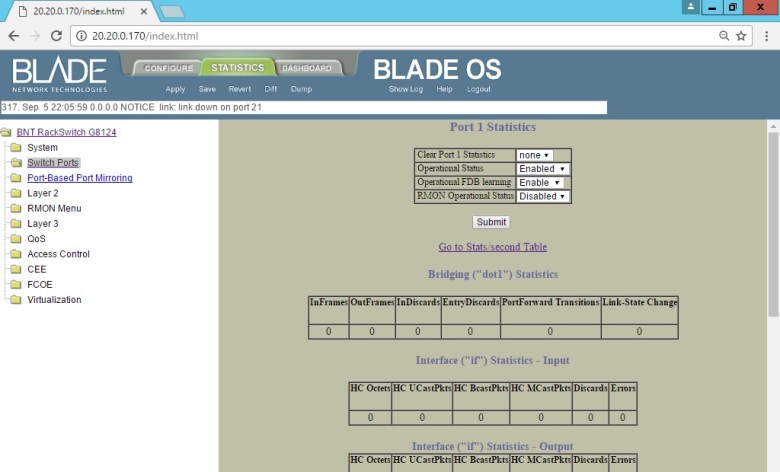

Set BLADE RackSwitch G8124 (Clear Delete Port Port) (4)

點選 STATISTICS
點選 Switch Ports
確認 Switch Port (1) 已經 0 數值
Set BLADE RackSwitch G8124 (Clear Delete Port Port) (5)

[ 清除全部 Port 的數值 ]
點選 STATISTICS
點選 Switch Ports
點選 Clear all ports statistics
Set BLADE RackSwitch G8124 (Clear Delete Port Port) (6)

[ Ps.目前 Switch Port “無" 任何的使用量 ]
Set BLADE RackSwitch G8124 (Clear Delete Port Port) (7)

點選 DASHBOARD
點選 Switch Ports
確認 Switch Port “無" 任何的使用量
[ Ps.之後重新偵測所有 Port Frames and Errors ]

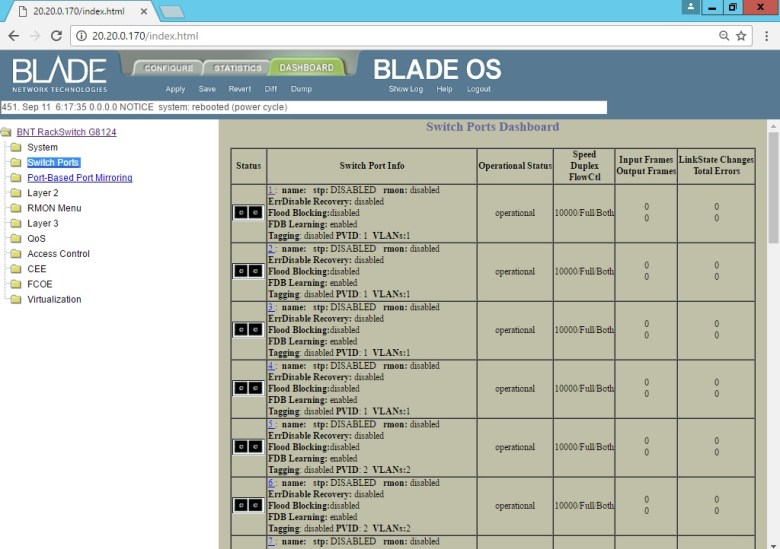

Set BLADE RackSwitch G8124 (Clear Delete Port Port) (8)

設定 BLADE RackSwitch G8124 (清除 刪除 Switch Port Status)
