介紹 BLADE RackSwitch G8124 (設定 Switch Port Status)

2017-02-06

開啟 20.20.0.170
Introduction BLADE RackSwitch G8124 (Set Switch Port Status) [0]

點選 BNT RackSwitch G8124

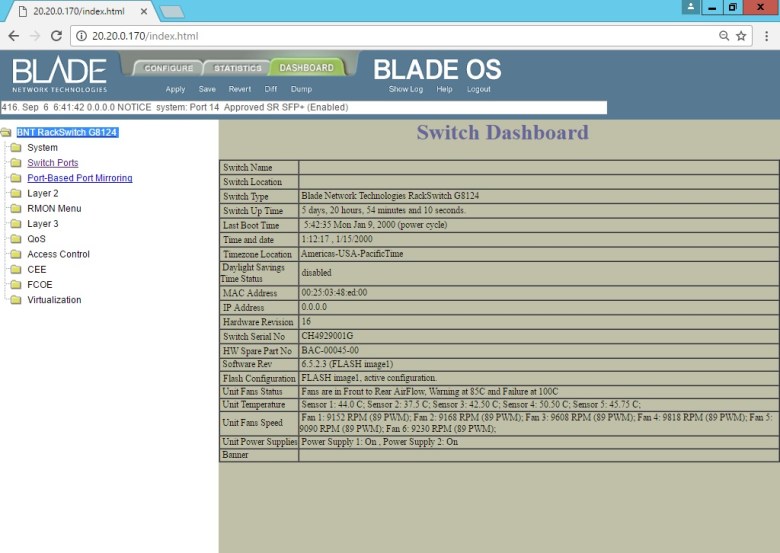

Introduction BLADE RackSwitch G8124 (Set Switch Port Status) [1]

點選 DASHBOARD
點選 Switch Ports
[ Ps.此頁面查看 Switch Port Info 狀態 (目前已插入 10G SFP+) ]

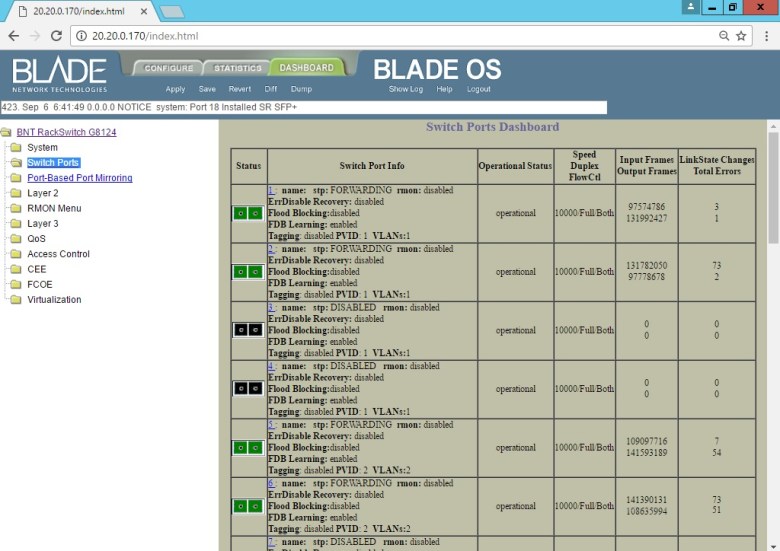

Introduction BLADE RackSwitch G8124 (Set Switch Port Status) [2]

點選 STATISTICS
點選 Switch Ports
[ Ps.此頁面查看 InOctets and OutOctets 狀態 ]
Introduction BLADE RackSwitch G8124 (Set Switch Port Status) [3]

點選 CONFIGURE
點選 Switch Ports
[ Ps.此頁面查看設定檔有無啟用 ]
Introduction BLADE RackSwitch G8124 (Set Switch Port Status) [4]

點選 DASHBOARD
點選 Switch Ports
點選 1
Introduction BLADE RackSwitch G8124 (Set Switch Port Status) [5]

[ Ps.可以清除 Port 1 Statistics 目前流量數值 ]
Introduction BLADE RackSwitch G8124 (Set Switch Port Status) [6]

點選 STATISTICS
點選 Switch Ports
點選 1

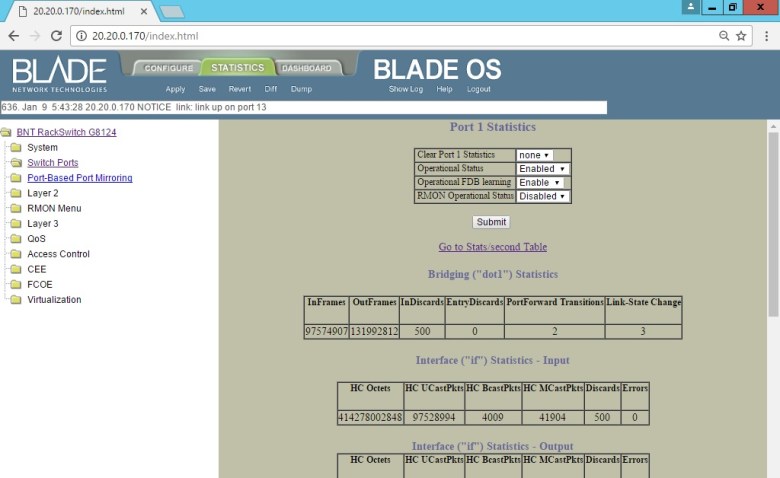

Introduction BLADE RackSwitch G8124 (Set Switch Port Status) [7]

[ Ps.如同 DASHBOARD 模式相同可以清除 Port 1 Statistics 目前流量數值 ]
Introduction BLADE RackSwitch G8124 (Set Switch Port Status) [8]

點選 CONFIGURE
點選 Switch Ports
點選 1

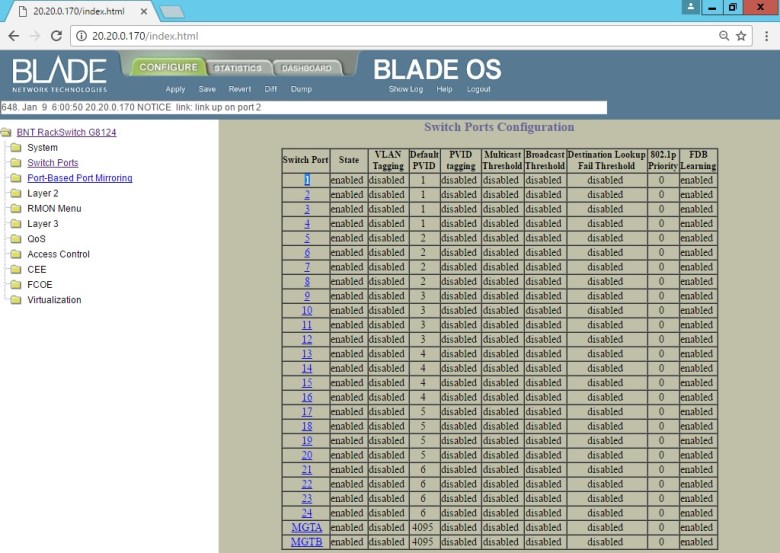

Introduction BLADE RackSwitch G8124 (Set Switch Port Status) [9]

[ Ps.在設定模式可以進行啟用 Port State 及 VLAN Tagging or VLAN ID ..等等 ]
